Technical Data.
Machine features
Machine Construction | Gantry design, machine frame made of polymer concrete casting, aluminum table | |
---|---|---|
Drive System | brushless, digital servo drives; direct drive ball screws for each axis | |

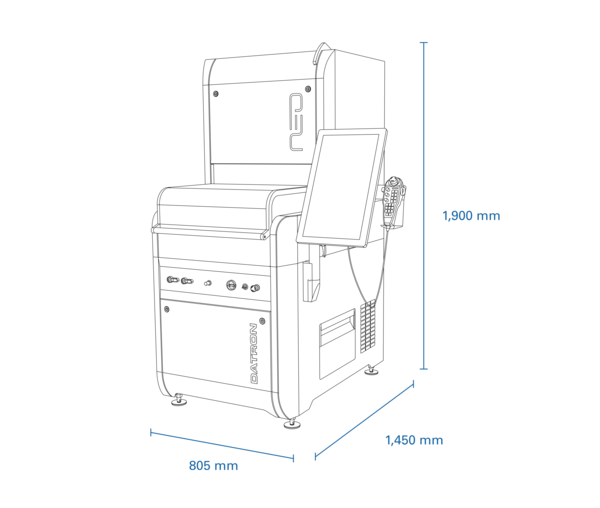

Floor Space without operating terminal (W x D x H) | 805 mm x 1,290 mm x 1,880mm (32" x 51" x 74") | |
Weight | approx. 700 kg (1,543 lbs.) |
Machining features
Traverse path (X × Y × Z) | 520mm x 420mm x 220mm (20.5" × 16.5" × 8.5") | |
---|---|---|
Machining Area (X x Y) | 500mm x 400mm (19.5" × 16") | |
Gantry height | 175mm (7") | |
Machining speed | up to 28m/min (1,102"/min) |
Equipment/Scope of delivery
High-frequency machining spindle | 2kW up to 40,000 rpm | |
---|---|---|
Tool magazine with tool-length sensor | 24-fold with direct shank tool holder | |
Minimum quantity coolant system | YES | |
Operator terminal | 24" multi-touch display | |
Comfortable hand held control unit | YES | |
Control system/Software | DATRON next | |
3D probe | YES |
Supply
Tension | 3 x 400 VAC /16A | |
---|---|---|
Power input | 3.5kW | |
Air supply | 7-10 bar (100 psi), dry, clean, oil-free | |
Ambient temperature | 18-30°C (65°-85°F) |
